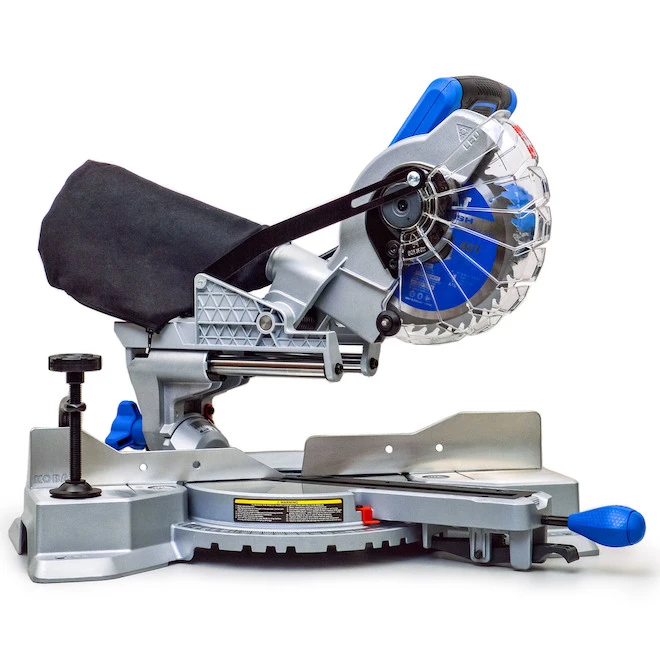

This Kobalt mitre saw has an innovative compact rail design that reduces the work space required for the operation of the saw. Powerful 10.0 amp ball bearing motor delivers 5,000 RPM for accurate cuts. Tall die-cast fences support during setup and cutting. Dual slide rail system with linear bearings allow for smooth and accurate operation. Miter cuts up to 50° left and right with 9 positive stops are most used angles. Upfront LED cut-line indicator projects an accurate pre-cutting line for precise alignment. Maximum crosscut up to 2-in x 8-in (nominal) at 90° and 2-in x 6-in at 45°. This product is backed by a 3-year limited warranty.
- Upfront LED cut-line indicator projects an accurate pre-cutting line for precise alignment
- Large, die-cast aluminum base and table for increased work support
- Tall, die-cast aluminum fences gives support during setup and cutting
- Powerful 10.0 Amp ball bearing motor, delivers up to 5,000 RPM for accurate cuts
- Lightweight (under 23 lbs) for easy transport from storage to work location
- Dual slide rail system with linear bearings allows for smooth and accurate operation
- Maximum crosscut up to 2-in x 8-in (nominal) at 90 degrees and 2-in x 6-in at 45, idea for molding and framing cuts
- Miter cuts up to 50 degrees left and right with 9 positive stops at the most used degrees
- Bevel cutting up to 47 degrees to the left, positive stops at 0 and 45 degrees
| Warranty | 3-year limited |
|---|---|
| Miter Stop | Yes |
| Height(mm) | 469.9 |
| Laser Color | N/A |
| Laser Guide | No |
| Length(cm) | 59.69 |
| Length(in) | 23.5 |
| Length(mm) | 596.9 |
| Maximum Miter Cut - Left(deg) | 50 |
| Maximum Miter Cut - Right(deg) | 50 |
| Maximum Speed(RPM) | 5000 |
| Number of Teeth | 40 |
| Height(cm) | 46.99 |
| Power Rating (HP) | 0 HP |
| Quick Release Vise | No |
| Safety Listing | cULus safety listing |
| Saw Blade Diameter | 7-1/4-in |
| Series Name | Compact |
| Slide | Yes |
| Sliding Fence | No |
| Spindle Lock | Yes |
| Tool Weight(kg) | 10.4328 |
| Height(in) | 18.5 |
| Folding | No |
| Width(cm) | 55.88 |
| Blade Included | Yes |
| Width(in) | 22 |
| Width(mm) | 558.8 |
| Worm Drive | No |
| Amperage(Amps) | 10 |
| Arbor Diameter | 5/8-in |
| Battery Included | No |
| Battery Voltage | N/A |
| Bevel | Single |
| Bevel Capacity(deg) | 47 |
| Charger Included | No |
| File/Certification Number | N/A |
| Compound | Yes |
| Cordless | No |
| Depth of Cut at 45 Degrees(cm) | 3.81 |
| Depth of Cut at 45 Degrees(in) | 1.5 |
| Depth of Cut at 45 Degrees(mm) | 38.1 |
| Depth of Cut at 90 Degrees(cm) | 5.08 |
| Depth of Cut at 90 Degrees(in) | 2 |
| Depth of Cut at 90 Degrees(mm) | 50.8 |
| Dust Handling | Port |
| Electric Brake | Yes |
| Tool Weight(lbs.) | 23 |
